A beam of light represents a mood, A beam of light is a time
According to the application scenes, you can freely match different lighting schemes, reading,
watching movies, and playing games, all have comfortable and exclusive home lighting effects.
Brightness and color temperature stepless adjustment let light bring you endless fun
Color temperature
2700-6500K color temperature range, two-way adjustment of cold and warm colors.
Brightness
1%-100% brightness adjustment，Light on/off slowly, support state memory.
Smart lighting Improve the sleep quality of family
The Amaz smart lighting system improves the sleep quality of family, whether it is an early
day of energizing, or a more concentrated work and study, it can provide the most
comfortable lighting experience.

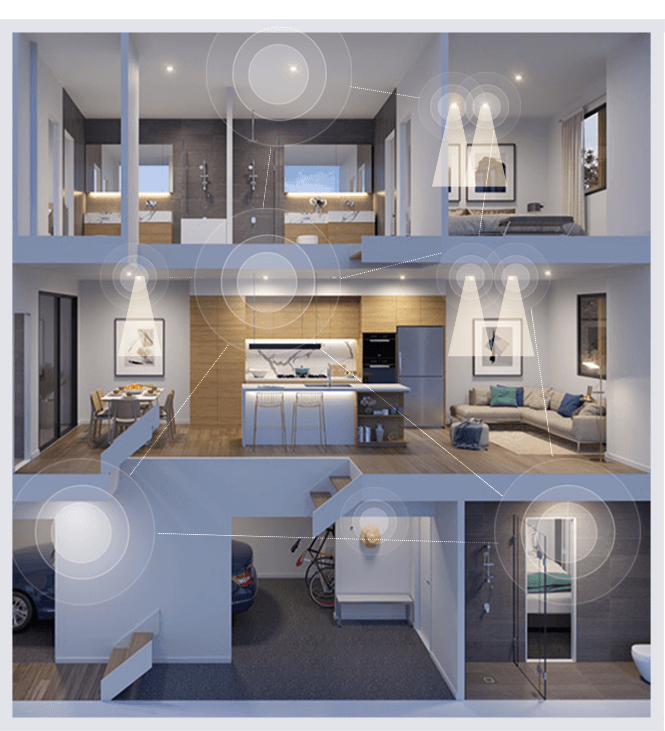

Zigbee full house smart interconnection
Adopting industrial-grade zigbee communication protocol, with strong reliability and scalability, with its own
routing function,
suitable for a large number of lighting applications at home, more stable than WiFi, and
more farther than bluetooth.
R90 high rendering restores true colors
RA90 high rendering index, luminous flux as high as 350lm/450lm, makes the color of
the illuminated object more real and restores the true colors of the home.
* Please cut off the power before installation

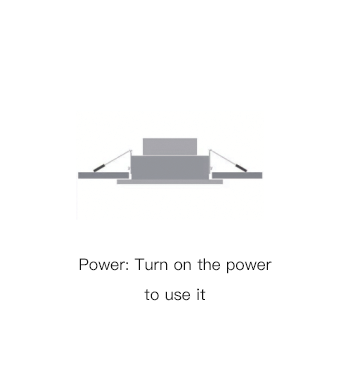

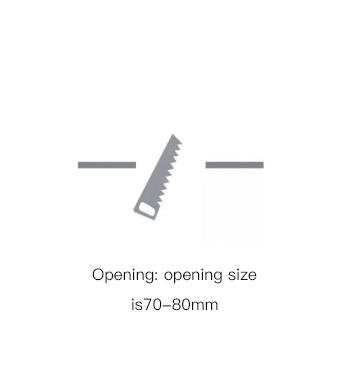

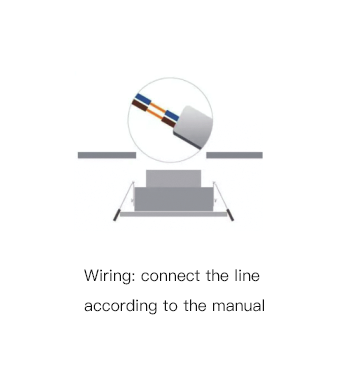

Installation Notes
Specifications
Model
DD10ZSpecifications
2.5 inches, 91×63mm, opening 70–80mmRated power
5WRated input
100–240V～ 50/60HzPower factor
0.5Luminous flux
350lm, RA90Color temperature range
2700–6500KBrightness adjustment
1%–100%Optical requirements
SMD, 100° luminous angleOther requirements
No flicker, anti-glareCommunication protocol
ZigbeeSpecifications
Model
DS10ZSpecifications
2.5 inches, φ85×60mm, opening 70–80mmRated power
6WRated input
100–240V～ 50/60HzPower factor
0.5Optical requirements
COB + lens, 32° luminous angle, 30° rotation angleColor temperature range
2700–6500KBrightness adjustment
1%–100%Luminous flux
450lm, RA90Other requirements
No flicker, anti-glareCommunication protocol
Zigbee *Accessibility of some features may vary across regions. Product pictures, videos and display contents on the foregoing pages are provided for reference only. Actual product features and specifications (including but not limited to appearance, colour, and size), as well as actual display contents (including but not limited to backgrounds, UI, icons and videos) may vary.
**All data in the foregoing pages are theoretical values obtained by AMAZ SMART SOLUTIONS internal laboratories through tests carried out under particular conditions. For more information, refer to the aforementioned product details. Actual data may vary owing to differences in individual products, software versions, application conditions, and environmental factors. All data is subject to actual usage.
***Due to real-time changes involving product batches, production and supply factors, in order to provide accurate product information, specifications, and features, AMAZ SMART SOLUTIONS may make real-time adjustments to text descriptions and images in the foregoing information pages, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice.
